Solar Panel Testing and Inspection Equipment

Verify Photovoltaic Modules

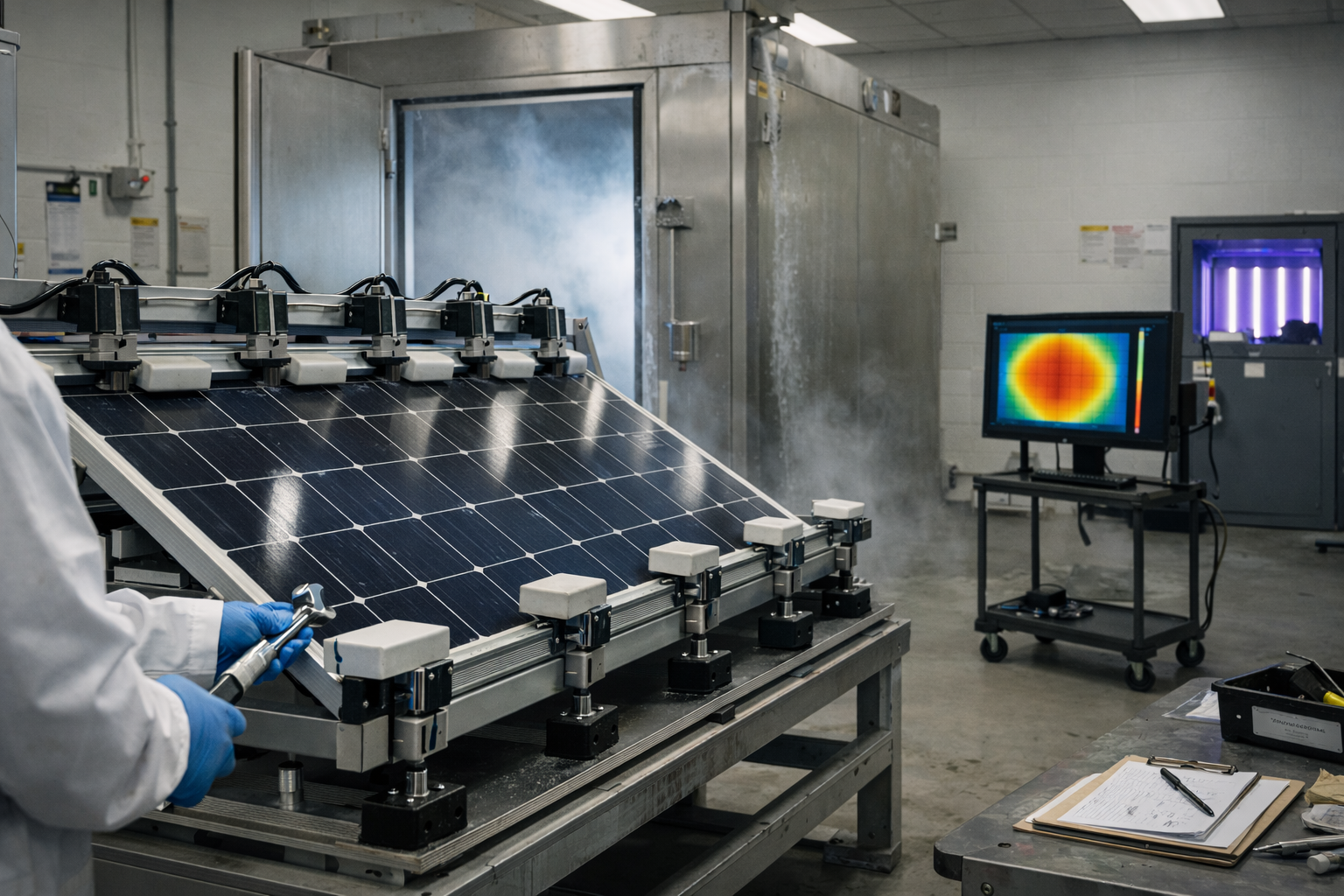

As the solar industry has grown over the years, the SDC team has developed many types of automated testing and inspection equipment for photovoltaic (PV) module manufacturers.

All our solar testing equipment can be customized to meet requirements for safety, function and performance while maintaining compliance with UL 61730-1 and UL 61730-2 standards. All SDC systems are equipped with additional ergonomic and safety features.

Verify Photovoltaic Modules

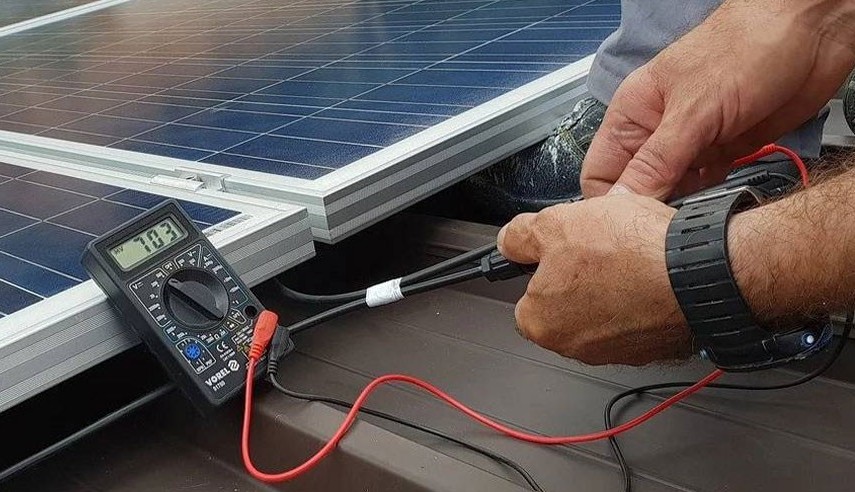

Wet or Dry High Potential (HIPOT) Testing System

As the solar industry has grown over the years, the SDC team has developed many types of automated testing and inspection equipment for photovoltaic (PV) module manufacturers.

All our solar testing equipment can be customized to meet requirements for safety, function and performance while maintaining compliance with UL 61730-1 and UL 61730-2 standards. All SDC systems are equipped with additional ergonomic and safety features.

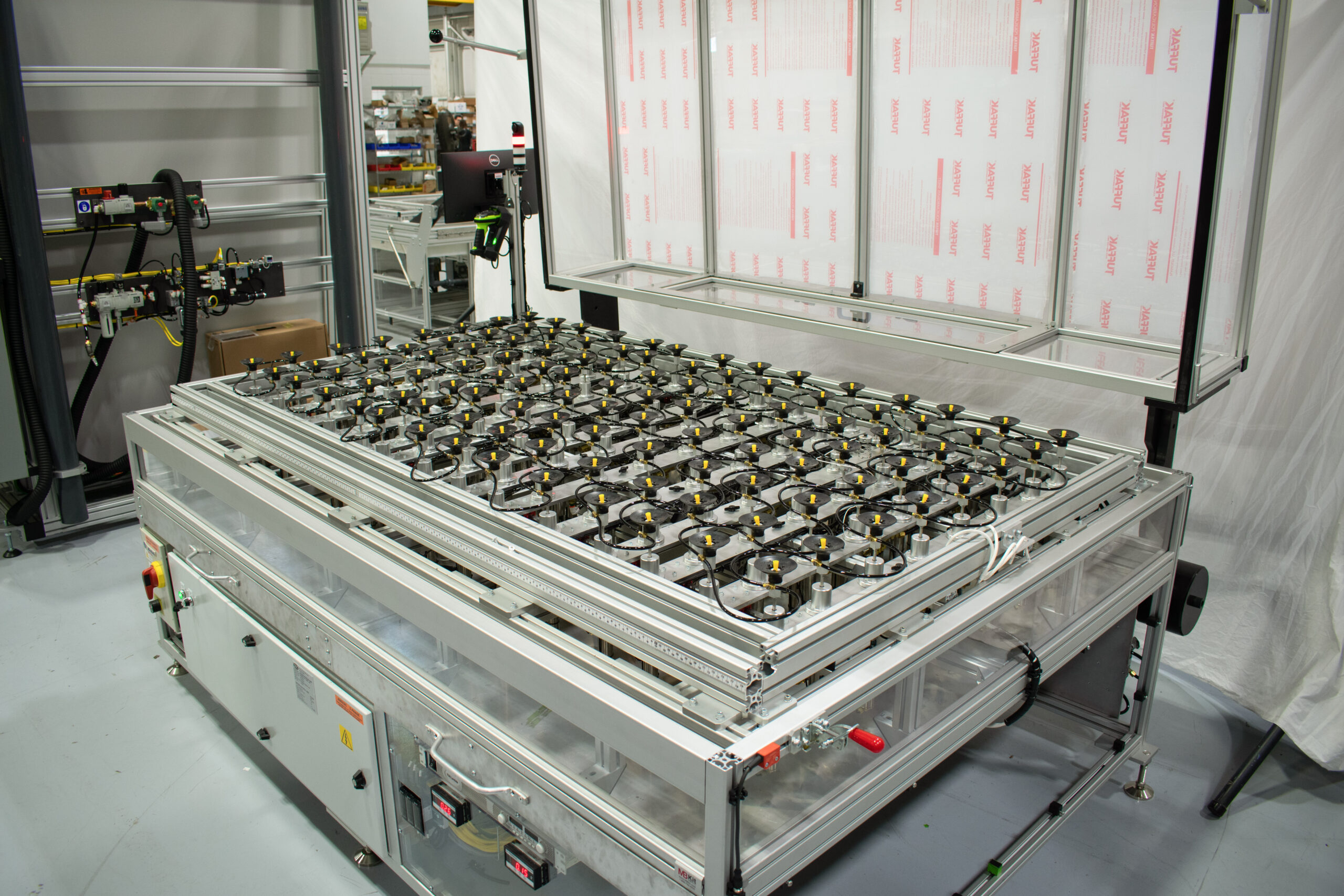

Mechanical Load Test System (Static and Dynamic)

Measure the durability and longevity of PV panels. SDC's mechanical load test can perform both static and dynamic load testing. Our system is equipped with zone control which can isolate and test only certain zones of the panel, if desired.

Our system operates using a series of programmed and pneumatically powered cylinders with suction to connect to the module. The cylinders move on a pre-determined test schedule that specifies the speed, force and duration of each test. Our system can accept a wide range of PV module sizes up to 2009mm x 1232 mm. Our system meets the requirements in IEC 61215-1-1.

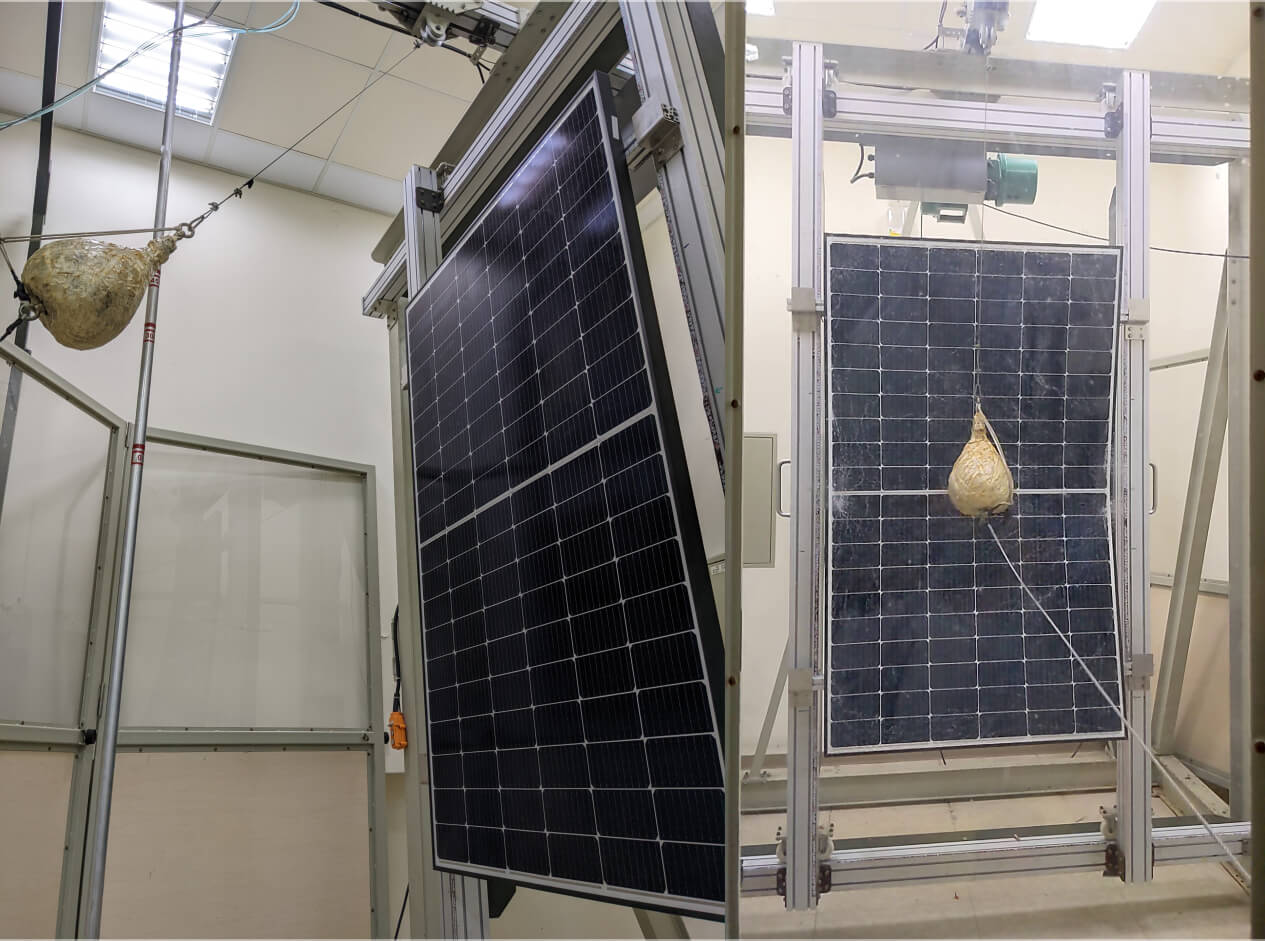

Module Breakage & Hail Impact System

Test PV modules to ensure they can withstand a severe storm with hail and other impact. Our equipment performs both a module breakage test (module rupture test) and a hail impact test.

Module breakage test: per IEC 61730-2:2015, Section 10.20, this system is equipped with a small wrecking ball mechanism that can swing and contact the module at a predetermined speed in order to test breakage.

Hail impact test: per IEC 61215-2, Edition 1 2016-03, Section 4.17, this system is equipped with a pneumatic powered launch mechanism to accurately launch pre-made ice spheres at the module to simulate hail.Our system can test modules up to 2009mm x 1232 mm.
